Fabric style | Weave | Weight (oz) per sq yard | Thickness per ply, nominal | Yarn description: warp,fill |
|---|---|---|---|---|
1527 | plain | 12.7 | 0.016" | EGC 50 1/3, EGC 50 1/3 |
1564 | plain | 12.6 | 0.015" | EGC 37 1/2, EGC 37 1/2 |
1528 | plain | 6.0 | 0.007" | EGC 150 1/2, EGC 150 1/2 |
7628 | plain | 6.0 | 0.008" | EGC 75 1/0, EGC 75 1/0 |
1581 | 8H satin | 8.9 | 0.009" | EGC 150 1/2, EGC 150 1/2 |
7781 | 8H satin | 9.0 | 0.010" | EGC 75 1/0, EGC 75 1/0 |
These laminates are used as a reinforcing gasket where windows and canopies are attached to the aircraft. Products include nylon-reinforced acrylic, fiberglass-reinforced acrylic, and nylon-reinforced epoxy-vinyl ester laminates.
Fabric style | Weave | Weight (oz) per sq yard | Thickness per ply, nominal | Yarn description: warp, fill |
|---|---|---|---|---|
SN-49 | plain | 2.3 | 0.006" | 210 denier, 210 denier |
SN-10 | 2x2 basket | 7.5 | 0.020" | 210/4, 210/4 |
Requests for quotation and availability call 631-422-2200 or email to lumasite@aol.com will receive a prompt response.

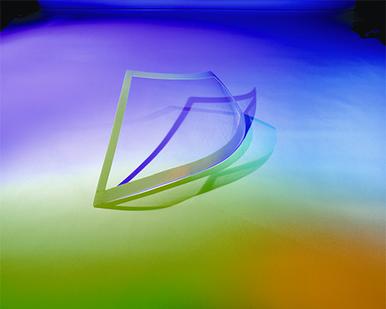

Transparency Attachment Panels
Thickness is ordinarily related to the number of plies of fabric reinforcement incorporated into the laminate, and the specific style of reinforcement used. Inventory of six styles of fiberglass reinforcement, and two styles of nylon reinforcement, are on hand, and most laminate specifications can be promptly produced.
The fiberglass reinforcements used most often are described in the table below:
The two nylon reinforcements used most often are described here:
American Acrylic
Corporation
Laminates for transparency attachment are supplied with material certification documentation, which usually includes the QA inspection worksheet(s) and the weaver's certification of the fabric reinforcement. Customer must advise if further quality assurance testing is needed.
Laminates for transparency attachment applications in aircraft are manufactured in accordance with exacting specifications developed by aircraft manufacturers and designated subcontractors.
